2009 Polaris Industries Ranger RZR™ Sunset Red LE
Request a Quote Financing Calculator Request a Brochure Financing Form

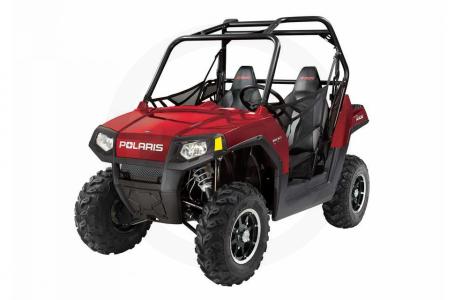

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

50" Razor Sharp Performance for Trail, Hunt, and Sport. It's the only Side x Side that's trail-capable. Its has true AWD traction and incredible agility.

  • 800 Twin EFI Engine: Industry-leading big bore 800 Twin EFI engine has the fastest acceleration of any Side x Side
  • On-Demand True AWD: Senses when the rear wheels slip to engage both front wheels with full torque, maximizing traction with true 4-wheel drive
  • Lowest Center of gravity: With the engine positioned behind the seat, the center-of-gravity is lowest in class for razor sharp handling and performance
  • Speed & Fastes Acceleration: Blazing 55 mph (88.5 km/h) top speed makes all other Side x Sides in its class eat dust
  • Independent Rear Suspension: Rolled independent rear suspension with an anti-sway bar and 9.5 in. (24.1 cm) or travel for a smooth ride
  • Ground Clearance: 10 in. (25.4 cm) of ground clearance keeps you off boulders and other trail obstacles
  • Adjustable seats & More: Adjustable seats, tilt steering and an adjustable passenger grab bar and a new heel pocket to lock in comfort
  • Lock & Ride cargo System: Exclusive cargo system lets you add or change accessories in less than a minute with no tools
  • 50-inch Width: A 50-inch Width makes it the only trail-capable SXS on the market
  • All the Utility You Need: With 300 lbs. box capacity, underseat storage, and Exclusive Lock & Ride® Accessories, RANGER RZR works hard
Engine
  • Displacement: 760 cc
  • Cooling Type: Liquid
  • Engine Type: Twin Cylinder
  • Top Speed: 55 mph (88.5 km/h)
  • Lubrication: Wet Sump
  • Oil Capacity: 2 qt. (1.9 l)
  • Carburetion: Electronic Fuel Injection
  • Fuel Capacity: 7.25 gal. (27.4 l)
  • Coolant Capacity: 4.8 qt. (4.5 l)
  • Alternator: 500 Watts
Drivetrain
  • Transmission: Automatic PVT
  • Gear Range: In-Line P-R-N-L-R
  • Drive System: 4 Wheel Shaft Drive
Suspension
  • Front Details: Double A-Arm with Antisway Bar
  • Rear Details: Rolled Independent with Antisway Bar
  • Front Suspension: 9.0 in. (22.9 cm) Double A-Arm with Anti-sway Bar
  • Rear Suspension: 9.5 in. (24 cm) Rolled Independent w/Anti-sway Bar
  • Front Tires: 25X8-12
  • Rear Tires: 25X10-12
Dimensions
  • Wheelbase: 77 in. (196 cm)
  • Turning Radius: 101.5 in. (258 cm)
  • Dry Weight: 945 lbs. (429 kg)
  • Ground Clearance: 10 in. (25 cm)
  • Length: 102 in. (259 cm)
  • Width: 50 in. (127 cm)
  • Height: 69 in. (75 cm)
  • Brakes: 4 Wheel Hydraulic Disk
Load Capacity
  • Box Dimension: 42 X 22 in. (107 X 56 cm)
  • Box Capacity: 300 lbs. (136 kg)
  • Payload Capacity: 740 lbs. (336 kg)
  • Hitch Towing Capacity: 1500 lbs. (681 kg)
  • Cargo System: Lock and Ride
  • Seating: 2
  • Skid Plate: Full
Limited Edition Features
  • Painted Sunset Red hood and dash.
  • Silver painted suspension springs.
  • Custom cut & sew stitches charcoal delux seat.
  • Black painted cab frame.
  • 12 in. black Crusher rims with Maxxis Tires.

Specifications

Engine
Engine Type 4-stroke twin-cylinder
Displacement 760 cc
Cooling Liquid-cooled
Fuel System Electronic Fuel Injection (EFI)
Chassis
Front Suspension Double A-Arm with antisway bar
Front Brakes 4-wheel hydraulic
Front Tire 25 x 8-12
Rear Suspension Rolled independent with antisway bar
Rear Brakes 4-wheel hydraulic
Rear Tire 25 x 8-12
Dimensions
Dry Weight 945 lbs. (429 kg)
Front Travel 9.0 in. (22.9 cm)
Fuel Capacity 7.25 gal. (1.9 l)
Rear Travel 9.5 in. (24 cm)
Wheelbase 77 in. (196 cm)
Ground Clearance 10 in. (25 cm)
Box Capacity 300 lbs. (136 kg)
Towing Capacity Hitch Tow Capacity: 1,500 lbs.(681 kg)
Transmission
Transmission Automatic PVT
Drive System 4-wheel shaft drive
General
Speedometer Standard: Multi-function
Tachometer Standard
Odometer Standard
Colors Sunset Red

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Ranger RZR™ Sunset Red LE
Style Side x Side
MSRP* $11,399.00
Chassis
Front Suspension Double A-Arm with antisway bar
Front Brakes 4-wheel hydraulic
Front Tire 25 x 8-12
Rear Suspension Rolled independent with antisway bar
Rear Brakes 4-wheel hydraulic
Rear Tire 25 x 8-12
Dimensions
Dry Weight 945 lbs. (429 kg)
Front Travel 9.0 in. (22.9 cm)
Fuel Capacity 7.25 gal. (1.9 l)
Rear Travel 9.5 in. (24 cm)
Wheelbase 77 in. (196 cm)
Ground Clearance 10 in. (25 cm)
Box Capacity 300 lbs. (136 kg)
Rack Capacity
Towing Capacity Hitch Tow Capacity: 1,500 lbs.(681 kg)
Engine
Engine Type 4-stroke twin-cylinder
Displacement 760 cc
Bore and Stroke
Cooling Liquid-cooled
Compression Ratio
Fuel System Electronic Fuel Injection (EFI)
Ignition
General
Speedometer Standard: Multi-function
Tachometer Standard
Odometer Standard
Colors Sunset Red
Warranty
Transmission
Transmission Automatic PVT
Drive System 4-wheel shaft drive
